*USW‑Industrial : 10-Port Durable Switch with High-Power 802.3bt PoE++

คุณสมบัติสินค้า:

[ USW‑Industrial ] รีวิว จำหน่าย ราคา Ubiquiti UniFi 10-Port Industrial Switch Layer 2 มี 10 Port Gigabit Ethernet จ่ายไฟแบบ 802.3af/at/bt PoE++

หมวดหมู่ : UniFi Switching

Share

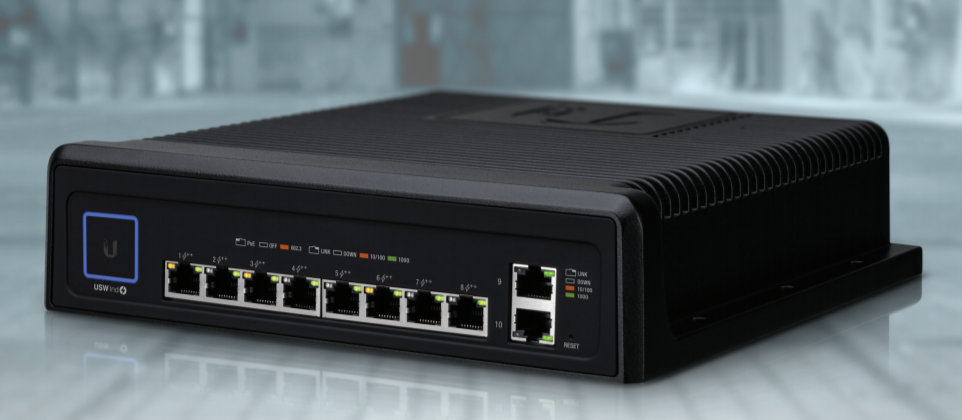

Ubiquiti Networks ขอแนะนำ Industrial Manage Gigabit Switch แบบ 10 Port ซึ่งเป็น Manage Switch ที่ทำงานได้บน Layer 2



คุณสมบัติย่อ  USW‑Industrial

  • 10-Port Durable Switch with High-Power 802.3bt PoE++
  •  Auto-Sensing IEEE 802.3af/at/bt PoE
  • Fanless Industrial-Grade Design
  • Plenum-Rated Form Factor
  • Managed by UniFi Network Controller
  • Die-Cast Aluminum (ADC12) with Black Powder Coated Finish
  • Managed by UniFi Network Controller version: 5.12.32 or higher

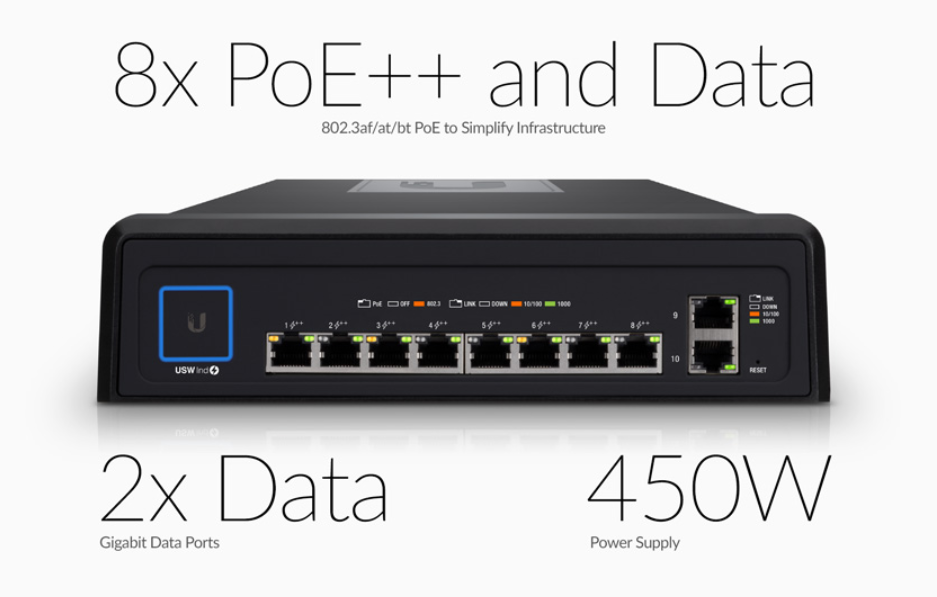

ความยืดหยุ่นของ PoE ++

USW‑Industrial มี 8 Port PoE ชนิด 802.3af / at / bt โดยอุปกรณ์สามารถตรวจจับชนิดของ POE ได้แบบอัตโนมัติ และให้กำลังไฟสูงสุดที่ 60W /พอร์ต สำหรับจ่ายไฟให้กับอุปกรณ์บนระบบเครือข่าย

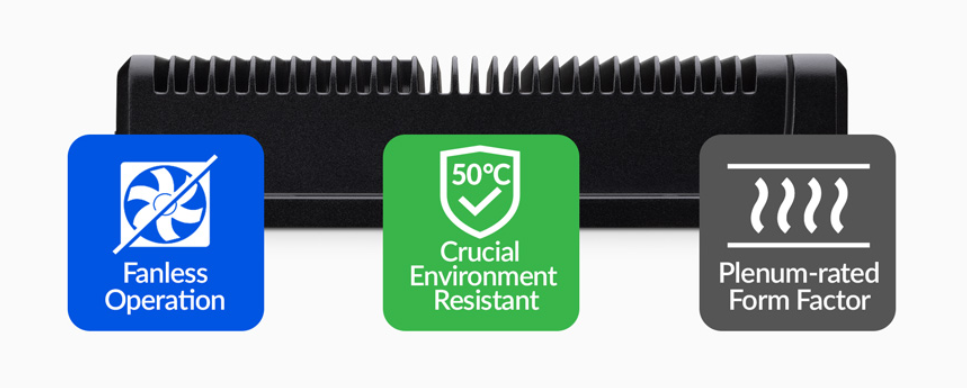

Industrial Grade Design

UniFi Switch Industrial grade แบบไม่มีพัดลม มันถูกออกแบบมาให้ระบายความร้อนได้ดีด้วยตัวของมันเอง

สามารถติดตั้งได้ทั้งแนวตั้งและแนวนอน ตัวเครื่องเป็นอะลูมิเนียมหล่อขึ้นรูปมีสีดำและถูกเคลือบเพื่อเพิ่มความทนทาน ทนต่อการกัดกร่อนได้เป็นอย่างดี มีกำลังไฟ 450W และสามารถทำงานภายใต้สภาพแวดล้อมที่สูงถึง 50 ° C ได้สบายๆ




Layer 2 Switching Capacity
UniFi Switch จะมาพร้อมกับ Function Switch ใน Layer 2





Products ที่สามารถทำงานร่วมกันได้

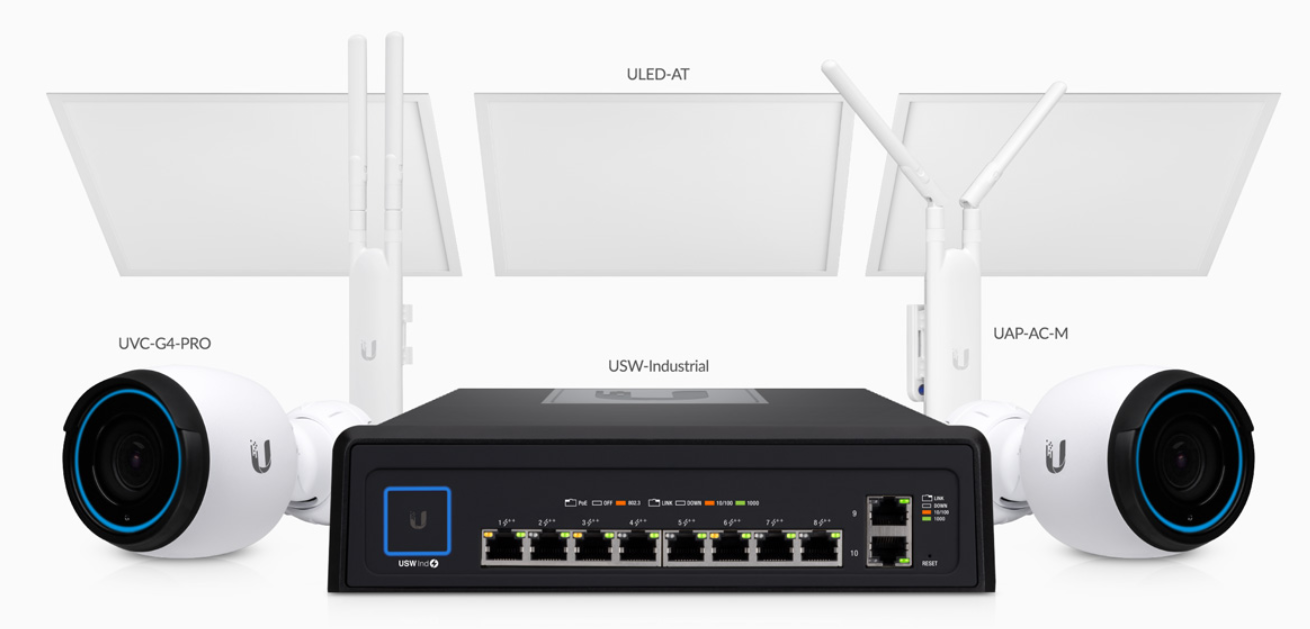

ด้วยภูมิปัญหาของทีมพัฒนาและวิจัยของ Ubiquiti Networks ทำให้ Unifi Switch รุ่น USW-Industrial สามารถทำงานกับอุปกรณ์ได้หลากหลาย อาทิ UniFi AC Mesh AP, UniFi Video Camera G4 Pro รวมทั้งแผงไฟ Unifi LED ซึ่งหลายตัวจะใช้ POE ชนิด 802.3at PoE +

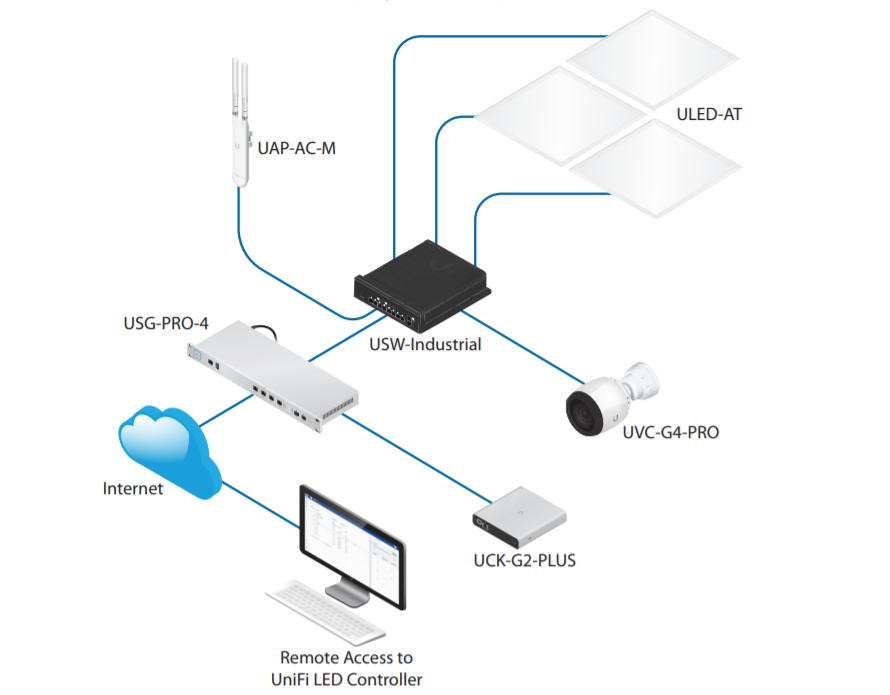

ตัวอย่างการต่อใช้งาน



คุณสมบัติเด่นของ UniFi ( ระบบปฎิบัติการ )

  • Operation mode (switching, mirroring, or aggregate) per port
  • Network/VLAN configuration
  • Jumbo frame and flow control services
  • Network settings
  • Storm control setting per port
  • Spanning tree configuration
  • 802.1x control and RADIUS VLAN
  • Debug terminal option for command-line interface



Switch Port Status

  • Connection speed and duplex mode
  • TX/RX data rates
  • Network/VLAN setting


Centralized Control ควบคุมจัดการง่ายๆ จากจุดศูนย์กลาง
ควบคุมบริหารจัดการอุปกรณ์ต่างๆ ได้ง่ายๆ ด้วย  Unifi Network Controller




 มี Mobile App ให้ใช้งานด้วยนะ





ตารางคุณสมบัติย่อ Industrial
Dimensions254 x 235 x 60 mm (10 x 9.25 x 2.36")
Weight
3.85 kg (8.49 lb)
Enclosure CharacteristicsDie-Cast Aluminum (ADC12)
with Black Powder Coated Finish
Interfaces

Networking
Management
-
(8) 10/100/1000 802.3bt PoE RJ45 Ports
(2) 10/100/1000 RJ45 Ports
Ethernet In-Band
Total Non-Blocking Throughput10 Gbps
Switching Capacity20 Gbps
Forwarding Rate14.88 Mpps
Power Method100 - 240 VAC, 50/60 Hz Universal Input
Power SupplyAC/DC, Internal, 450W DC
Supported Voltage RangeAC Input: 100 to 240VAC, Max. 6A
Max. Power Consumption
(Excluding PoE Output)
20W
Networking Interfaces(48) 10/100/1000 Mbps Ethernet RJ45 Ports
(4) 1 Gbps SFP Ports
LEDs
System
RJ45 Ports
-
Status
PoE, Speed/Link/Activity
ESD/EMP ProtectionAir: ± 24 kV, Contact: ± 24 kV
Shock and VibrationETSI300-019-1.4 Standard
Operating Temperature
Internal AC/DC @ 450W
Internal AC/DC @ 240W
-
-40 to 50° C (-40 to 122° F)
-40 to 60° C (-40 to 140° F)
Operating Humidity5 to 95% Noncondensing
CertificationsCE, FCC, IC

POE
PoE InterfacesPoE++ IEEE 802.3bt
(Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. PoE Wattage per Port by PSE802.3bt 60W
Voltage Range 802.3 PoE Mode50-57V
Max. Total PoE Power Budget430W

 แนะแนวทาง

  1. Download Quick Start Guide มาศึกษาก่อน วิธีการเริ่มต้น Setup จะอยู่ในตอนท้ายๆ
  2. เข้าไปดูตัวอย่างคำสั่งและวิธีการตั้งค่าได้จากที่นี่



สอบถามราคาพิเศษ / ปรึกษา Solutions ติดต่อได้ที่ LiveChat | สมัครตัวแทนจำหน่ายสินค้า Ubiquiti Networks  กรอกฟอร์มที่เมนูของเราได้เลย
