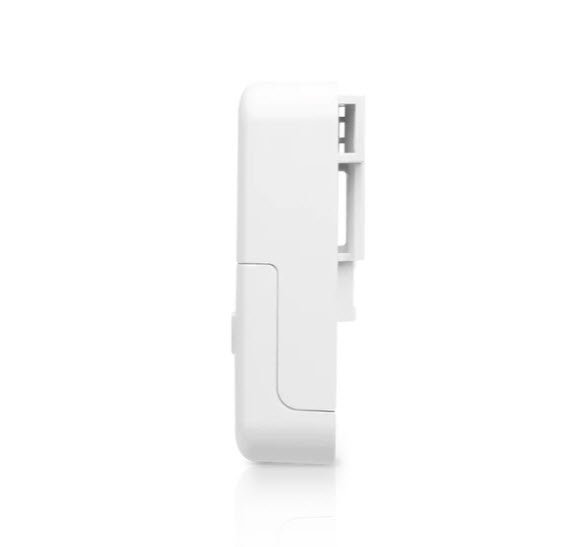

ETH-SP-G2 : Ethernet Surge Protector

คุณสมบัติสินค้า:

[ ETH-SP-G2 ] รีวิว จำหน่าย ราคา Ubiquiti ETH-SP-G2 คืออุปกรณ์ Ethernet Surge Protector หรืออุปกรณ์กันฟ้าผ่าทางสายแลน ที่เป็นชนิด Gigabit Ethernet

หมวดหมู่ : Airmax ACCESSORIES

Share

ESD protection for outdoor high-speed networks.

Ubiquiti Ethernet Surge Protector คืออุปกรณ์ป้องกันฟ้าผ่าทางสายแลน โดยรองรับความเร็ว 10/100/1000 ทั้งนี้ไฟที่จ่ายเข้าสู่อุปกรณ์ปลายทางด้วย PoE สามารถส่งผ่านข้ามอุปกรณ์ตัวนี้ได้เป็นอย่างดี โดยไม่มีผลกระทบใดๆ

 คุณสมบัติย่อ

  • Low-Cost Protection and Fast Installation
  • Protects Outdoor Ethernet Devices
  • Compatible with 10/100/1000 Mbps Networks



ETH-SP-G2
Dimensions91 x 61 x 32.5 mm (3.58 x 2.4 x 1.28")
Weight80 g
Interface Connections(2) RJ45 Female Connectors
ESD/EMP ProtectionAbsorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs
DC Spark-Over Voltage90V @ 100V/s
Maximum Impulse Spark-Over Voltage700V @ 1kV/µs
Discharge Current10kA+
Maximum Insulation Resistance1G ohm @ 50V
Maximum Capacitance1.0 pF @ 1 MHz
Data Line ProtectionRJ45 10/100/1000 Ethernet
PoE SupportYes
Shock and Vibration CertificationETSI300-019-1.4 Standard
Operating Temperature-30 to 65° C (-22 to 149° F)
Operating Humidity10 to 90% Noncondensing
