[ UBB-XG ] รีวิว จำหน่าย ราคา UniFi UBB-XG คืออุปกรณ์ PTP Building-to-Building Bridge ( 802.11ad ) ทรูพุทสูงสุด 6.6 Gbps ระยะทำการไกลสุด 500 Meter
หมวดหมู่ : UniFi ,  Building to Building ,
Share

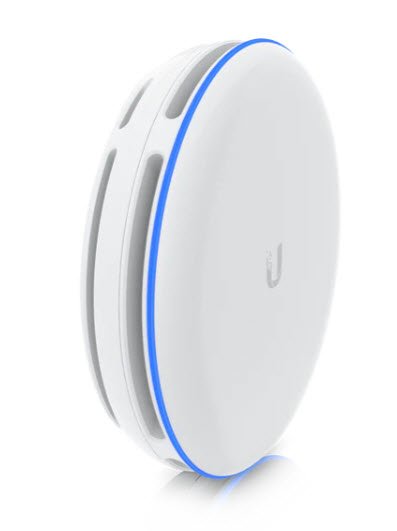

UBB-XG คืออุปกรณ์ส่งสัญญาณ Building to Building หรือ Point to Point บนคลื่นความถี่ 60 Ghz ที่ทำหน้าที่เป็น Link หลัก ( 802.11ad ) โดยมีคลื่นความถี่ 5 Ghz ทำหน้าที่เป็น Backup Link และสามารถให้ระยะทำการสูงสุดที่ 500 เมตร พร้อมกับทั้งมี Port 10 Gbps ชนิด SFP+ มาให้ด้วย
Unifi Building-to-Building Bridge เป็นอุปกรณ์ที่ติดตั้งง่าย โดยสามารถให้ทรูพุทสูงสุดที่ 6.6 Gbps
คุณสมบัติย่อ
UniFi OS ถูกออกแบบมาเพื่อการใช้งานที่หลากหลาย โดยคุณสามารถบริหารจัดการอุปกรณ์ต่างๆ ได้จากหน้าจอ Unifi Controller เพียงหน้าจอเดียว
Network Application
Protect Application
Talk Application ระบบโทรศัพย์ผ่าน Internet
ควบคุมง่ายด้วย Mobile App
ในระบบ Unifi ก็มี Mobile App ให้คุณได้ใช้งานกันฟรีๆ
ตารางคุณสมบัติจำเพาะ UBB-XG | |
Mechanical | |
Dimensions | Ø191.77 x 58.95 mm (Ø7.56 x 2.32") |
Weight | Without mount: 1.7 kg (3.75 lb) With mount: 2.85 kg (6.28 lb) |
Enclosure materials | Aluminum alloy, UV-resistant polycarbonate |
Mount material | Stainless steel |
Mounting | 60G precision alignment pole mount(included) Pole compatibility: Ø25.4-63.5 mm (Ø1-2.5") |
Weatherproong | IPX6 |
Hardware | |
Managementinterface | Ethernet Bluetooth |
Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
Button | Factory-reset |
LED | R/G/B |
Power method | PoE++ Passive PoE [4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)] |
Power supply | UniFi PoE switch 48V, 0.65A Gigabit PoE adapter (included) |
Supported voltage range | 48VDC ± 10% |
Max. power consumption | 31.2W |
Throughput rate | 5 GHz | 866.6 Mbps |
60 GHz | 6.6 Gbps | |
Maximum range | 500+ m (1,640+ ft) |
Operating temperature | 40 to 55° C (-40 to 131° F) |
Operating humidity | 5 - 95% noncondensing |
Certications | FCC, IC, CE, terragraph |
Software | |
WiFi standards | 802.11ad/ay 802.11ac (WiFi 5) |
Wireless security | WPA2 AES (Always On) |
Operating modes | PtP |
VLAN | Management VLAN only |
RF | |
Operating frequency* | 57 to 66 GHz *Dependentonregional regulations. |
Channel bandwidth | 2,160/4,320 MHz (Channel Bonding Enabled) |
Operating channels* | 58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz *Dependentonregional regulations. |
Backup RF | |||
Operating frequency* | US/CA | U-NII-1 | 5,150 - 5,250 MHz |
U-NII-2A | 5,250 - 5,350 MHz | ||
U-NII-2C | 5,470 - 5,725 MHz | ||
U-NII-3 | 5,725 - 5,850 MHz | ||
5,150 - 5,725 MHz | |||
*Dependentonregional regulations. | |||
Channel bandwidth | 20/40/80 MH |
